特征与用途Features:
·全钽外壳、气密封、同向引出、有极性、带法兰盘结构，便于安装。
Tantalum case encapsulation, Hermetically Sealed, Axial-lead，Heteropolarity, With Flange Plate for installation；
·产品是钽电解电容器和电化学电容器组成的混合电容器，体积小、存储能量大。
Commingled by Electrolytic Tantalum Capacitor and Electrochemical Capacitor, Small in size, Super Capacitance. This series products is firstly witnessed at home;
·电性能优良稳定、可靠性高、寿命长、单位体积内能量密度大。
Stable in Electrical Performances, High Reliability, Long life-span, Maximum in the Density of Capacitance and Energy;
·在能量转换电路、功率脉冲电路中可以起到电池作用，为电路提供贮能、断电延时等功能。
Built-in as battery in Energy-conversed-circuit &Power-pulsed-circuit, functioned as filtering, storage energy, blackout& delaying;
·订货格式：THC2F-80V5600μF -M：100只
Ordering Information: THC2F-80V5600μF -M：100 pcs
主要技术性能
使用温度范围：-55℃～+125℃（+125℃施加类别电压使用）
Operating Temperature Range: -55℃～~+125℃(when ＞+125℃， with rated voltage derating)
储存温度范围：-62℃～+130℃
Storage Temperature Range: -62℃～+130℃
容量允许偏差： K：±10%;M级：±20%；Q级：－10%～ ＋30%
Capacitance Tolerance:K：±10%;M级：±20%；Q级：－10%～ ＋30%
电性能：见表1
Electrical Performances: See tables;

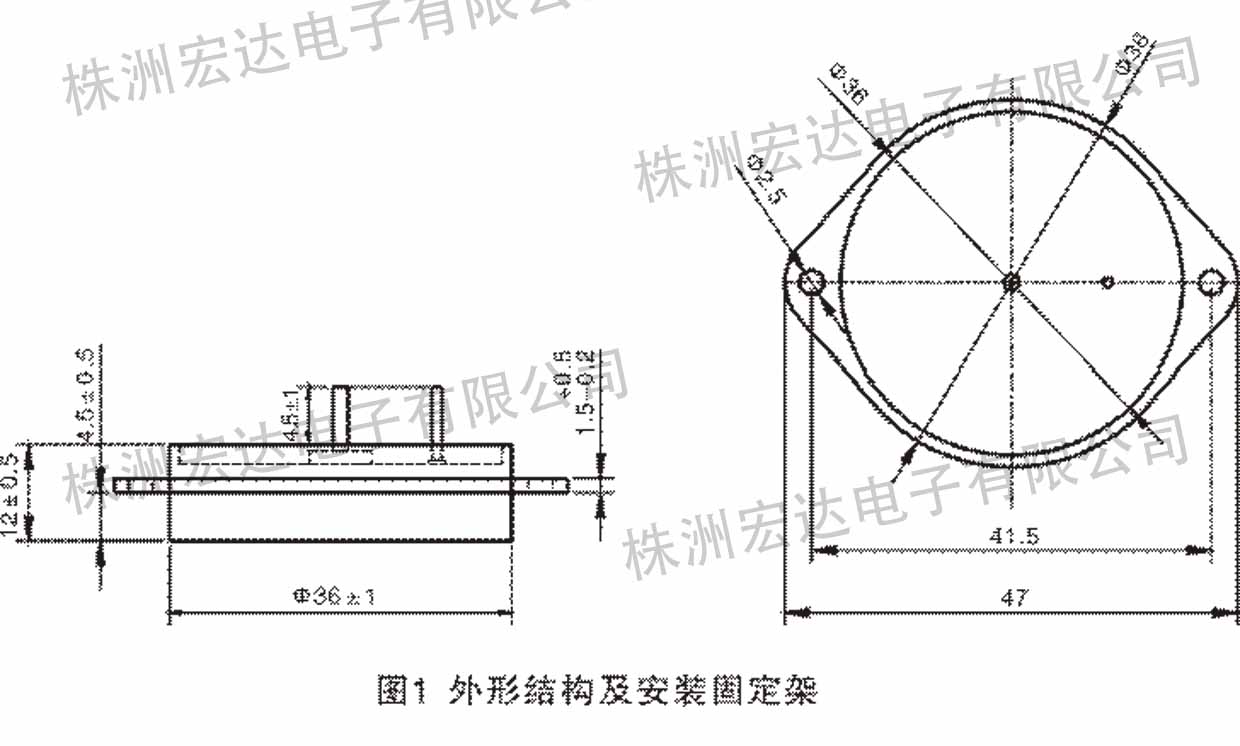

外型尺寸：见图1
Dimensions: See table1;
表1 THC2F型高能钽混合电容器性能参数
|
额定
电压
(V)
Rated Voltage,
(V)
|
类别
电压
(V)
Category Voltage
(V)
|
浪涌
电压
(V)
Surge Voltage(V)
|
|
